Introduction

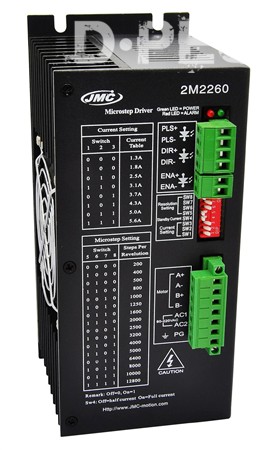

The 2M2260 is one of the few Direct-On-Line Step Motor Drive, available in the industry, which can be simply power up from the AC power source without the need of a Power Supply. This makes it cost effective and space efficient. With a higher voltage input, this high performance bi-polar two phase micro-stepping drive is able to excite a motor size from Nema 23 up to Nema 42. It can drive 2 Phase hybrid motor, that comes in 4, 6, or 8 leads.
With an automatic optimization speed control technique, the PowerStep series drive output is very stable, with almost zero vibration and noise, performing close to a servo system, allowing the motor to operate smoothly. That helps to fulfill a design requirement of low noise, low heat and high performance.
Specifications
|
Parameters
|
Min
|
Typical
|
Max
|
Unit
|
|
Output Current (Peak)
|
1.8
|
-
|
7.9
|
Amps
|
|
Supply voltage
|
80
|
110
|
220
|
VAC
|
|
Logic Input Current
|
7
|
10
|
16
|
mA
|
|
Pulse input frequency
|
0
|
-
|
200
|
KHz
|
|
Low Level Time
|
2.5
|
|
|
µsec
|
|
Cooling
|
Natural Cooling or Forced Convection
|
|
Environment
|
Space
|
Avoid dust, oil frost and
corrosive gases
|
|
Ambient Temperature
|
0°C－50°C
|
|
Humidity
|
40 －80%RH
|
|
Vibration
|
5.9m/s² Max
|
|
Storage Temp.
|
-10°C －80°C
|
|
Weight
|
Approx. 1.5 Kg
|
